Beomaster 8000 - Workbench Unit - Testing a replacement device for the AD 10/278 Multiplex Switch on the preamplifier board

One of my first projects utilizing my new, dedicated workshop Beomaster 8000 unit is to test out a replacement device I created for the BM8000 preamplifier board's input source switching ICs - IC102 and IC202. They are the no-longer-available AD 10/278 multiplexer device.

Here is the circuit diagram of the Beomaster 8000 preamplifier source select switching.

As you can see there are actually two types of analog switch devices. 3IC102 and 3IC202 are AD 10/278 devices for selecting between FM, Phono and Tape 2 left and right channel sources. 3IC4 is an AD 10/192 device that selects between Tape 1 or whichever source is selected with 3IC102 and 3IC202. Selection control of course comes from the Beomaster 8000 Microcomputer board (via 3P14).

Once in a while AD 10/192 devices can be found for sale but I have never been able to find NOS AD 10/278 ICs. Concerned that a failed AD 10/278 can bring an entire Beomaster 8000 restoration project to a grinding halt I decided to look into making a modern replacement. I was also motivated by reports from some Beomaster 8000 owners who complained about crosstalk between the FM source and Phono source. I felt that if that were to occur it would most likely be due to a problem with the 3IC102 and 3IC202 analog switch. However, I must confess, after quite a number of Beomaster 8000 restorations I have yet to experience any crosstalk problems between input sources myself. Still...another reason to create a replacement device.

To follow Beolover's lead in creating replacement parts for the various Bang & Olufsen restorations we have done, a key goal is that the new part be a direct plug and play replacement. No modifications to the Bang & Olufsen component to use it. So in the case of the AD 10/278 replacement I needed a design that would result in the old 3IC102 and/or 3IC202 desoldered for removal...and the replacement inserted and soldered into place.

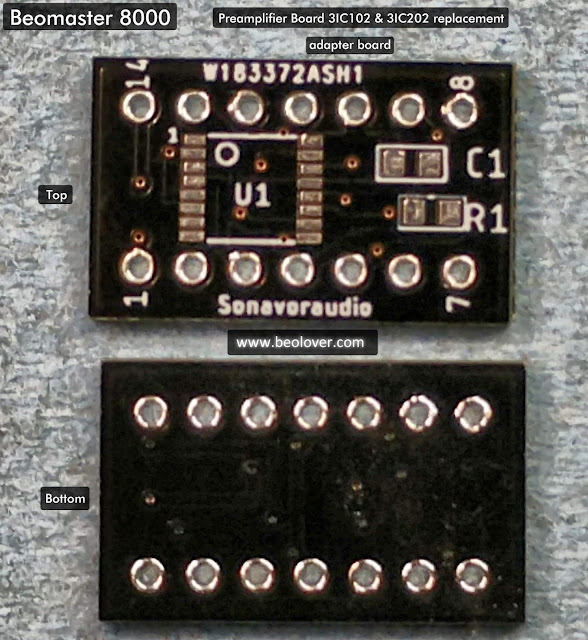

I believe I have accomplished that with a custom adapter board and a modern three channel SMD multiplexer device designed for audio switching.

I started with a prototype using the replacement device in a standard DIP package layout and a breadboard circuit where I could test inputting test signals and selecting channels just like the Beomaster 8000. Once I had that perfected I sent my design off to have my adapter boards made.

Here is my breadboard tester for the AD 10/278 with the various test devices.

Confirming that the prototype and first replacement units function just like the original devices I installed the first two replacement units in a Beomaster 8000 preamplifier board.

Then the preamp board into my Beomaster workshop unit.

The results are as good as I expected. The source selection works just as it should and I cannot hear any crosstalk between selected sources.

I need to run some additional testing of course but I am thrilled with these initial results.

Beomaster 8000 - Workbench Unit

After restoring quite a few Beomaster 8000 receiver units I have developed several bench testing aids. I have some jigs for testing the rebuilding of displays and I have a test setup for testing the Beomaster 8000 output amplifier assemblies.

During various Beomaster 8000 projects I have also restored a number of Beomaster 8000 spare circuit boards. To checkout my spares and to aid in Beomaster 8000 diagnostic trouble-shooting I have been wanting to built up a dedicated, workbench unit. This would be a test unit I could swap boards in and out of easily for testing purposes. I had a couple of spare Beomaster 8000 chassis laying around so the time finally arrived to implement this workbench Beomaster 8000 unit.

Here is the completed workbench Beomaster 8000. It will remain in its service position and never be completely reassembled. I want it always available for testing.

Even the startup circuit is left open for measurements and to test the startup relays. This unit has two brand new 7RL1 and 7RL2 relay devices installed. It also has replacement 7R1 and 7R2 5.6Ω current limiting resistors.

I also replaced the four ±55VDC power supply reservoir capacitors with the Beolover Beomaster 8000 reservoir capacitor kit.

A bonus side benefit of having this workbench Beomaster 8000 is that I can also listen to it while working on various Beolover Blog projects :-)

In the upcoming weeks I will be doing some Beomaster 8000 board restoration and testing. I will utilize this test unit for those tasks and detail the work here on the Beolover Blog.

Beogram 4002 DC Motor Restoration

A Beogram 4002 DC Motor arrived from Virginia. This is the motor as received:

I took it apart to extract the bearings for oil infusion. As with most Beogram DC motors, this motor made squealing noises when I ran it from my bench supply. A clear indication of dry bearings, the most likely root cause for RPM variations. This shows the disassembled motor:

The bearings are the two small donuts on the black pad. I submerged them in motor oil and pulled a vacuum:

Immediately, strong bubbling started from both bearings. This indicates that the vacuum drew the air from the pores of the brass Oilite bearings. After about three days the bubbling stopped, indicating that the infusion process was complete. I extracted the bearings from the oil:

Then I reassembled the motor and installed it in one of my Beogram 4002s for an RPM stability test with my BeoloverRPM device.

This is the 24 hrs RPM curve I measured:

A very nice result. Pretty much as good as it gets with the Beogram 4002 DC motor! This unit is back in business!

1615CMBG4002MOT

Beogram 4004 DC Motor Restoration

A Beogram 4004 DC Motor arrived from Germany for restoration. This shows the motor as received:

When I tested it, it ran very noisily, a clear case for oil infusion. I took the motor apart and extracted the bearings. Sadly, I forgot to take a picture of the disassembled motor....this shows the bearings submerged in oil after pulling a vacuum:

Immediately, vigorous bubbling occurred as the vacuum pulled the air trapped in the pores of the Oilite bearing material. This created room for oil to diffuse into the bearing. After about 3 days the bubbling stopped, i.e the bearing was again full of oil. I extracted the bearings from the oil and installed them in the motor. Then it was time for testing the RPM stability. I inserted the motor into one of my Beogram 4002s and ran it for 24 hrs while logging the RPM with my BeoloverRPM device:

This is the curve I measured:

this is pretty much as good as it gets with the Beogram DC motors, i.e. this motor is ready for duty again!
