Sunday, November 26, 2023

Beogram 4004: DC Platter Motor Restoration

I recently received the DC platter motor of a Beogram 4004 from a customer in Poland for restoration. It exhibited the usual RPM variations due to dry motor bearings.

This shows the motor as extracted from the packaging:

I disassembled the motor to extract the bearings:
The bearings are the two small donuts on the black pad. I immersed them in oil and pulled a vacuum:
Immediately strong bubbling started. This is indicative of air being drawn from the empty pores of the Oilite bearing material. This makes room for oil to diffuse into the bearing, replenishing its oil reservoirs.

After about three days the bubbling stopped and I extracted the bearings from the oil:
I reassembled the motor and installed it in one of my Beogram 4002s for a 24 hrs RPM stability test with the BeoloverRPM device:
The BeoloverRPM allows logging the RPM in 10s intervals for extended periods of time, perfect for detecting sporadic RPM fluctuations. Luckily with this motor no significant fluctuations were detected. This is the curve I measured:
A very nice curve! This motor is back in business and can be sent home to its Beogram!






Wednesday, November 15, 2023

Quad 33 Preamplifier: A B&O Project Diversion

Here is a quick non-B&O project that diverted my attention recently :-)

I did not know about Quad and the (famous) Quad 33 preamplifier growing up.  It wasn't until I started working on Bang & Olufsen (vintage) audio components that I became aware of the Quad 33.  A number of vintage B&O collectors I know also like Quad audio components so that created my interest.

Recently, I decided to dive in and check one out.  Currently, here in 2023, used, unrestored Quad 33 preamplifiers can be found in the $200 USD range.  That's not bad and quite affordable when you hear one.  Now that I have heard it I can see why it is popular.  It sounds great.

Here is the Quad 33 as I received it.




































The first thing that jumped out at me is how nice it looks.
It is a smart, clean design and it is very compact compared to other preamplifiers.  Especially when the Quad 33 came out ... 1967 !

I love how the rear panel input and output jacks label what the (DIN) pins are.  That is great.
The Quad 33 uses 5 pin DIN jacks for the audio inputs and a 4 pin DIN jack for the preamplifier audio output signal.  The 5 pin DIN inputs match what the Bang & Olufsen source components provide (i.e. Beogram and Beocord cable plugs).  The 4 pin DIN audio output jack is not commonly found but plugs for those are available at places like Mouser.

The design of the Quad 33 preamplifier also provided a way for an owner to change the input gains for the Tape input/output and the Disc (phono) input.

That is done using removable/changeable boards in the back of the Quad 33 cabinet.
























































Here is the Quad 33 with its outer cover removed.


























I have the primary preamplifier boards outlined in the photo above.
Starting on the left is the Disc (turntable) board (M12019).  It is the phono preamp with the RIAA functionality.

Next to the Disc board is the Power Supply (M12032).  It includes the transformer and is switched on and off by a power switch built into the back of the volume control.

On the far right are two preamplifier boards (M12017).  One for each channel (left and right).

One of the first things to check on a used Quad 33 preamplifier component is the Balance slider control that is just under the volume control (on the front panel).  It turns out that it is very common for the mechanical control mechanism to have broken ... and no longer work.

That was the case with mine.

These next few photos show my Quad 33 with the front panel removed and the repair of the Balance control.

The problem that occurs is that the Balance potentiometer starts to bind and becomes difficult to turn.
That puts pressure on a plastic fork piece that is the mechanical control of the Balance control.
Eventually the pressure is too much and the fork breaks off rendering the control mechanism non-functional.  The next photo shows a disassembled Balance control with a broken fork.





























The round post on the Control Lever is supposed to rest in the gap of the two-pronged, plastic fork.
As you can see, one side (prong) of the fork is no longer there.

My repair for the broken fork was to design and make a 3D printed part that would just snap over the remaining fork part of the control.  One reason for that is the white, plastic fork piece is glued into the Balance slide control.

Here is the 3D part ready to be fit onto the Balance slider.





























... and here is the 3D part installed.  I just snapped it in place without glue.  I plan to leave it like that and glue it in later if that becomes necessary.






































The above photo showing the repair of the broken, plastic fork also shows a different 1kΩ (linear) Balance potentiometer installed.

The repair of the fork corrected the broken mechanical part of the Balance Control but it doesn't fix the problem that caused it.  That was the original Balance potentiometer that started to bind (stiffen up).

I took Balance potentiometer apart and cleaned it with Deoxit. That made a big difference and the potentiometer became easy to turn again.  Note: Initially it would not turn without the aid of pliers !



















After reassembling the potentiometer I measured to see that it was functioning.  It was.
However, the control did not feel smooth.

So I decided to replace the potentiometer with a modern Bourns 1kΩ potentiometer.

The replacement potentiometer is very smooth and quiet.  The barrel of the control fit perfectly through the mounting hole.  The only issue was that the shaft of the control was a little bit long to fit behind the Quad 33 front panel.

Instead of cutting the metal control shaft off (to fit), I decided to just design and print another 3D part to act as a spacer.  I designed the spacer to support the potentiometer key so I still had a mounting key.

Here is the new Bourns potentiometer and mounting spacer installed.





























Moving on from the Balance control repair I performed some capacitor replacement tasks.
That was to replace the old electrolytic capacitors in the Quad 33 with new electrolytic capacitors.

Here are the Quad 33 areas where I replaced electrolytic capacitors.
Pretty minimal compared to my other recent audio restoration projects.



























Here are the boards after the capacitor replacement.





































I won't show it but I also did some Deoxit cleaning on the other Quad 33 potentiometers (volume and filter controls) as well as the pushbutton switches.

At this point I reassembled the Quad 33 and tested it with a Quad 405 (current dumping) power amplifier that I also recently acquired.  The Quad 405 power amplifier only required a few capacitors replaced on each output amplifier board and nothing else.

To my disappointment, the Quad 33 did not power up.

That took me to the second mechanical switch repair that had to be performed.

It turns out that a failed Quad 33 power switch is not uncommon either.

Here is the problem I discovered after trouble-shooting, then opening up the Quad 33 power switch.































































As you can see in the highlighted sections of the photo above, there are worn areas of the power switch contacts caused by arcing when the contacts close.

The Quad 33 itself doesn't require a lot of power so my theory is that power switch wear like this more likely occurs when other electrical components are plugged in to the two AC line accessory jacks at the rear of the Quad 33 cabinet.  Something like a power amplifier that also gets turned on when the Quad 33 is turned on would cause much more current to pass across the Quad 33 power switch contacts.

In any case, my power switch was faulty and I had to repair it.

One option was to just connect the fused AC line input directly to the Quad 33 transformer and not use the power switch.  In that case the Quad 33 could be plugged into a nice surge protection device that has a power switch.

I wanted to have the Quad 33 Volume/Power Switch work though ... so I opted to attempt a repair.

It was not very easy as it turned out.
As you can see in the first photo of the disassembled power switch above, I was able to open it up.
That required carefully prying out the round phenolic switch contact board from the black, plastic housing.

From there I filed and cleaned the switch contacts.  That was pretty easy.

The power switch reassembly is where the difficulty was.
Maybe there is some neat trick to it but I didn't find one.

The main problem is to keep the switch components in place when the phenolic switch contact board is mated back into the housing.  The metal spring mechanism presents the biggest challenge because it has to connect to a part on the switch contact board and to a part on the housing ... plus, the spring is fighting the attempt to do that.

After quite a few unsuccessful tries I decided to use some thick damping grease that I use on my B&O projects (for damping lids closing).

The damping grease is so thick that it kept the switch components from moving when I mated the switch contact board back into the housing (and maneuvering the spring in to place).

Here is the reassembled power switch.





























In case you are wondering ... yes, that is a spare Volume Control/Power Switch in the background.
Its power switch has the same failure.

Although the contact switch assembly fit back into the housing snuggly,  I didn't trust that it would remain that way with just friction so I used some JB Weld epoxy to seal the deal.

Here is a photo of the Volume Control/Power Switch re-installed in the Quad 33.
In looking at the Quad 33 schematic that came with the preamplifier, I could see that the Volume Control/Power Switch assembly (both of mine) is missing a safety capacitor across the contacts that power is applied to.



























I found out from another Quad 33 owner that has a working unit that the missing part (SKF24R) is a 0.042uF + 100Ω safety capacitor.  I used this one from Mouser.



























That took me to attempt number two of listening to music with the Quad 33.























The audio was quite good ... when there was sound :-(

I was experiencing a channel dropout whenever I operated a switch on the Quad 33 front panel.  So obviously, there was some sort of bad connection going on there.

I couldn't visually inspect and see the problem so I reasoned that I needed to disassemble and clean all of the front panel switches.  That would give me piece of mind that the switches were indeed, clean.
The exercise of touching all of the switches would give me a chance to go over all of the solder joints too.

So off I went on another switch repair exercise.

The worst part of the pushbutton switch cleaning was getting to them.
I did have to remove a lot of the inner components of the Quad 33.






































I removed the switch assembly for the stereo and source selection.  It solders to a "motherboard" of the Quad 33 plus it has a small, interconnect board that solders on the top of it.  So it required complete de-soldering and removing to clean.























On the switch assembly for the Quad 33 filters, I decided I could clean them without removing the assembly from the Quad 33.

























Removing and opening up the pushbutton switches for cleaning was surprisingly easy.  Easy compared to the switch assembly of a Beomaster 3000, 4000 or 4400 amplifier.

The main thing is to be in control of the individual switch when the spring is released.  You don't want parts ejected across the room.  Keeping control of the switch is pretty easy though :-).

The switches are freed up from their respective switch holder assemblies by carefully lifting up metal tabs and removing three metal clips that group sets of switches together.  For example the stereo and mono switches make up one switch group.  The source selection make up another switch group and, of course, the filter buttons are a switch group.





























Even though the switches are the same mechanical switch design, their assemblies are slightly different depending on the number of contacts in the switch.

Here is one of the largest switches, the filter cancel button.


















By first pulling the button spring back and releasing the front of the white, plastic clip ...





























... the white plastic clip can be slid towards the back and lifted out.
WARNING: Removing the clip is what fully releases the spring.  So the technique is the hold the pushbutton assembly together with one hand while removing the white, plastic clip with the other.
With the clip removed, you can slowly let go of the pushbutton assembly so the switch can be pulled apart without the spring causing any problem.

Oh yeah, pull the switch part with the spring loaded contacts out of the switch with the switch situated with the bottom side up (as shown in the next photo).























I used Deoxit on the contacts (with the tiny springs) and on the contacts inside the switch housing.
My cleaning tools were a small brush and a foam pad.






















Reassembly of the switch is just the reverse of the disassembly of course.

Some of the pushbutton switches do not have the white, plastic clip that is removed.
Instead, they have a built in plastic tab that must be lifted to allow the switch to be disassembled.
Take care to keep the pushbutton assembly under control as the tab is released.
















I cleaned all of the switches the same way.

Overall, the task was not bad and went quickly.  I was careful on each switch to make sure I was always in control of the spring.

I reassembled the Quad 33 for the third time.


























Finally, the Quad 33 is fully operational.
























I did test it again with the Quad 405 power amplifier and a pair of Beovox MC 120.2 speakers.
It sounded very good and there are no glitches in sound.
Whatever it was, cleaning the switches or re-soldering all of the board joints, the channel dropout problem is gone.

My next step was to build a preamplifier to power amplifier cable I could use with another power amplifier (other than the Quad 405 amplifier).

I used a Switchcraft 4-pin DIN plug and a pair of female RCA plugs to make the cable.




























I will now test this wonderful little preamplifier with some other power amplifiers I own and do some music listening tests before doing any electronic measurements on the bench.

Saturday, November 4, 2023

Beogram 4002: DC Platter Motor Restoration

I recently received the DC platter motor of a Beogram 4002 from a customer in Utah for restoration. Most Beogram 400x platter motors have dry bearings these days, and that usually results in intermittent RPM variations that get increasingly worse. Re-infusion of the bearings with oil is the cure for this issue.

This shows the motor as received:

I took it apart to get to the bearings:
The bearings are the two small donuts on the black pad upfront. I immersed them in motor oil and pulled a vacuum. Immediately strong bubbling started:
This bubbling is indicative of air being drawn from the empty pores of the Oilite bearing material. Once the air leaves, the remaining vacuum allows oil to diffuse into the material. The process usually takes about 2-3 days until the bubbling stops. Then it is time to extract the bearings:
I re-assembled the motor and then it was time to give it a 24 hrs RPM stability test with the BeoloverRPM device:
The BeoloverRPM allows logging the RPM for extended periods of time in 10s intervals, perfect for spotting intermittent RPM inconsistencies. This is the curve I measured after about 24 hrs:
In terms of short term variations this curve is as good as it gets with the Beogram DC platte motors. The long-term drift is a sign for bearing and shaft 'getting used to each other' in their new orientations after the infusion process. The RPM will stabilize in a few 10s of hours. Until then it is a good idea to check the RPM periodically to make sure the speed is close to spec.


Beogram 4004 (5526): A New Arrival from California En Route to the UK

I recently received a Beogram 4004 that a customer in California sourced on ebay. Unfortunately, the unit suffered during shipping since the seller did not package it correctly and so the brand new replacement hood that came with it got damaged. Once I am done with the restoration this Beogram will be shipped to the UK.

This shows the Beogram after I extracted it from the box:

The unit is in pretty decent condition. After cleaning the keypad a bit it revealed itself as almost pristine:

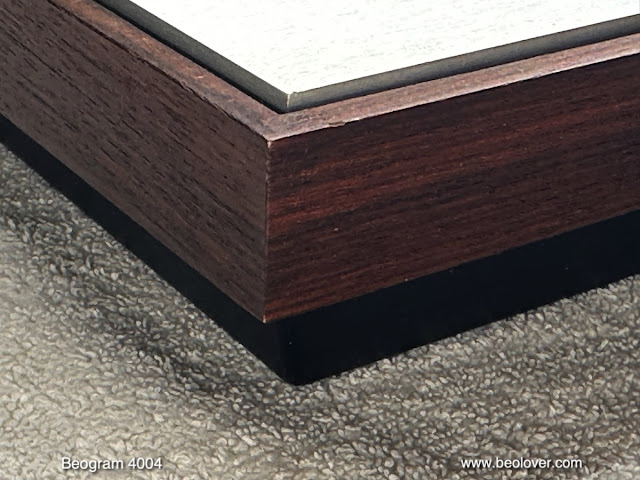

The plinth corners are also fairly good with only some minor chipping:
Unfortunately, the platter has a few small scratches:
The hood hinge has some corrosion:

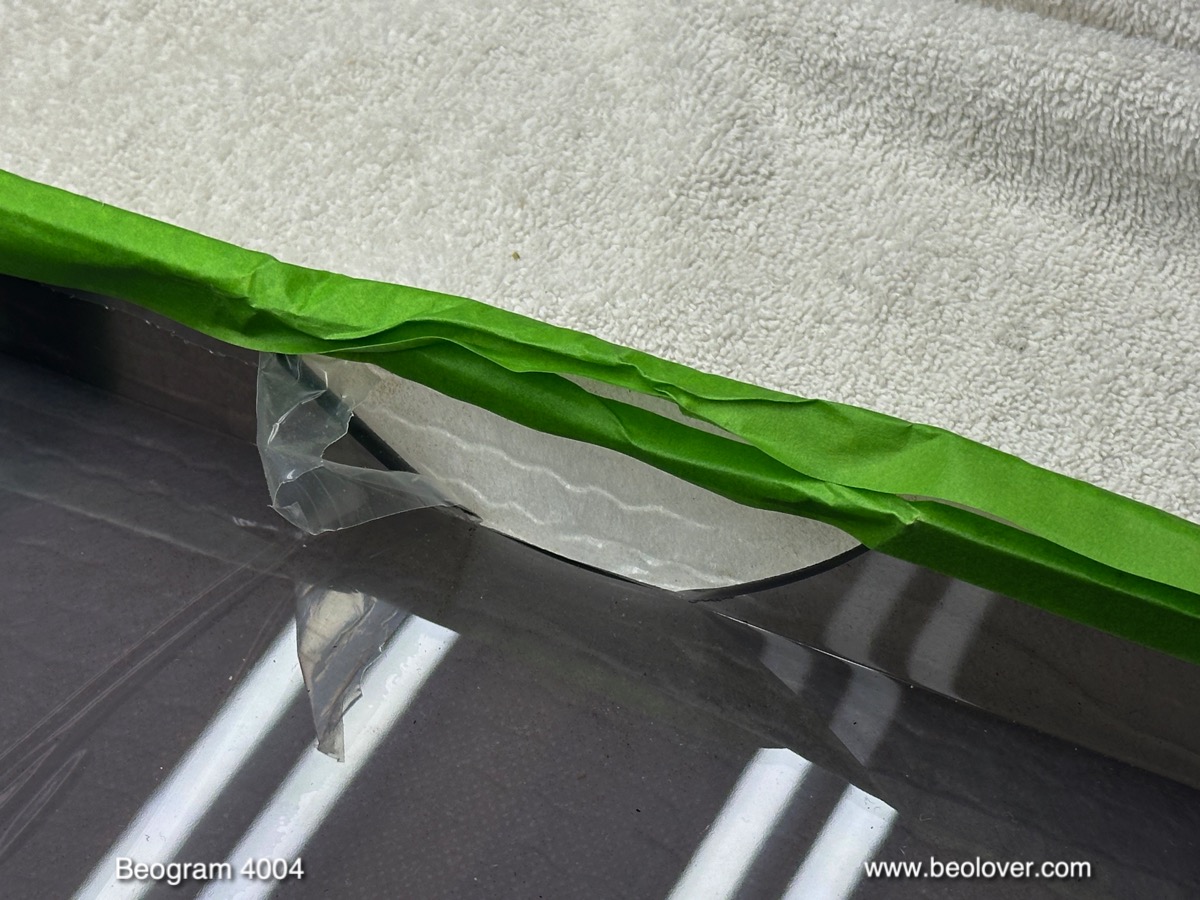

And very sadly, the brand new hood that the ebay seller purchased for this unit lost a piece during shipping:
Luckily, reproduction hoods are now readily available so it will be easy to recover from this mishap.
After this visual inspection of the cosmetic condition, I removed the aluminum panels and had a look below deck:
As usual for the 4004 the transport locks are completely degraded and their fragments are strewn about the enclosure:
The carriage pulley is also cracked:
Luckily, all this can be fixed with new Beolover parts.
I plugged the unit in and pressed START. The carriage started moving and the arm stopped properly at the LP setdown point. All good signs suggesting that the restoration will likely be straight forward.
Stay tuned for my follow up post, which will describe the work done on this unit to get it back to like-new performance.
